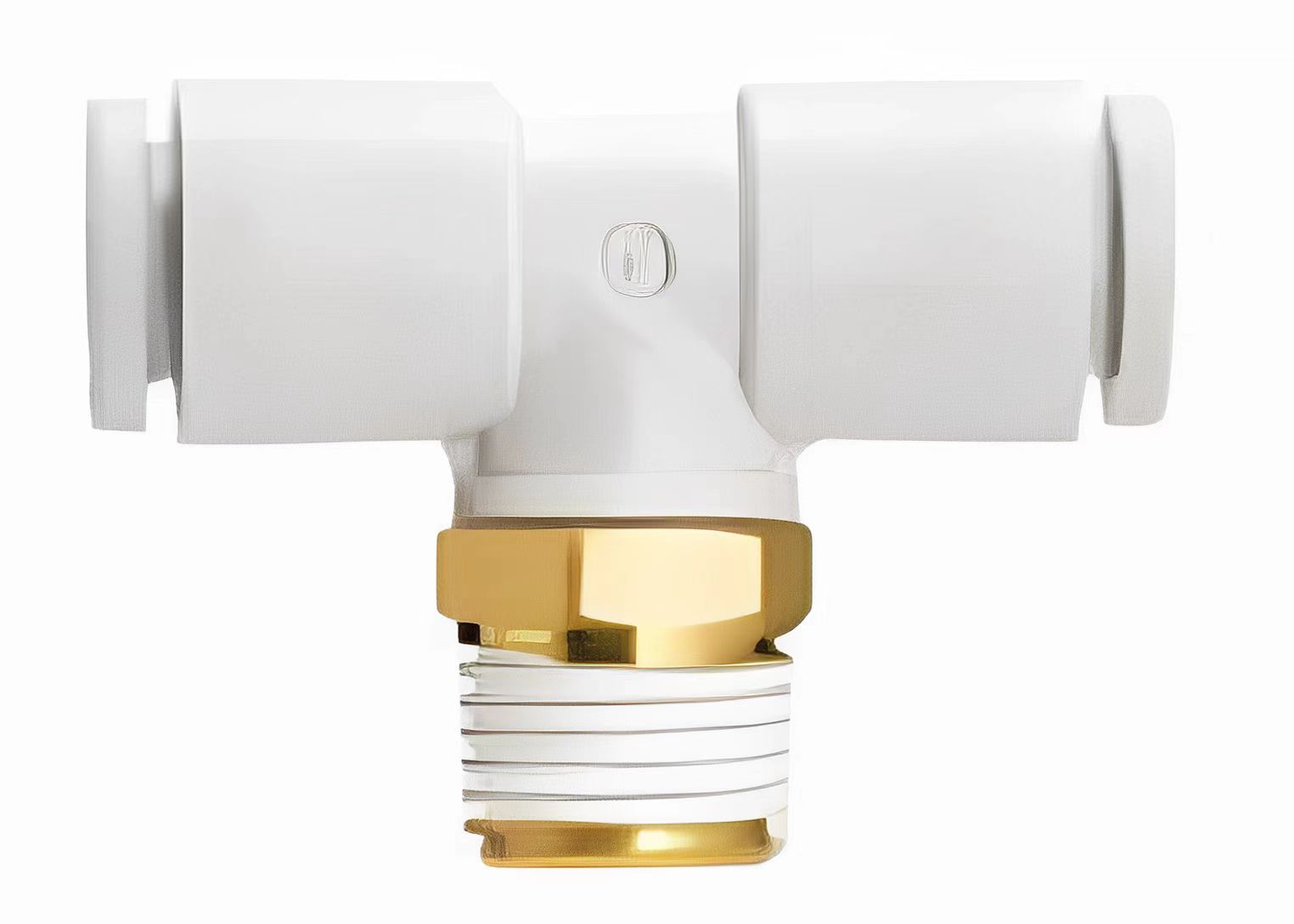

Joint LA7T04-01AS
The air pipe joint is a key pneumatic component that connects the end of the industrial robot arm to the end effector. It is a pneumatic joint specifically designed and optimized for the robot EOAT application scenarios. They are responsible for transmitting the main air source from the internal or external pipeline of the robot arm to the end tool, and they are the "last link" of the robot pneumatic system.
Product Details

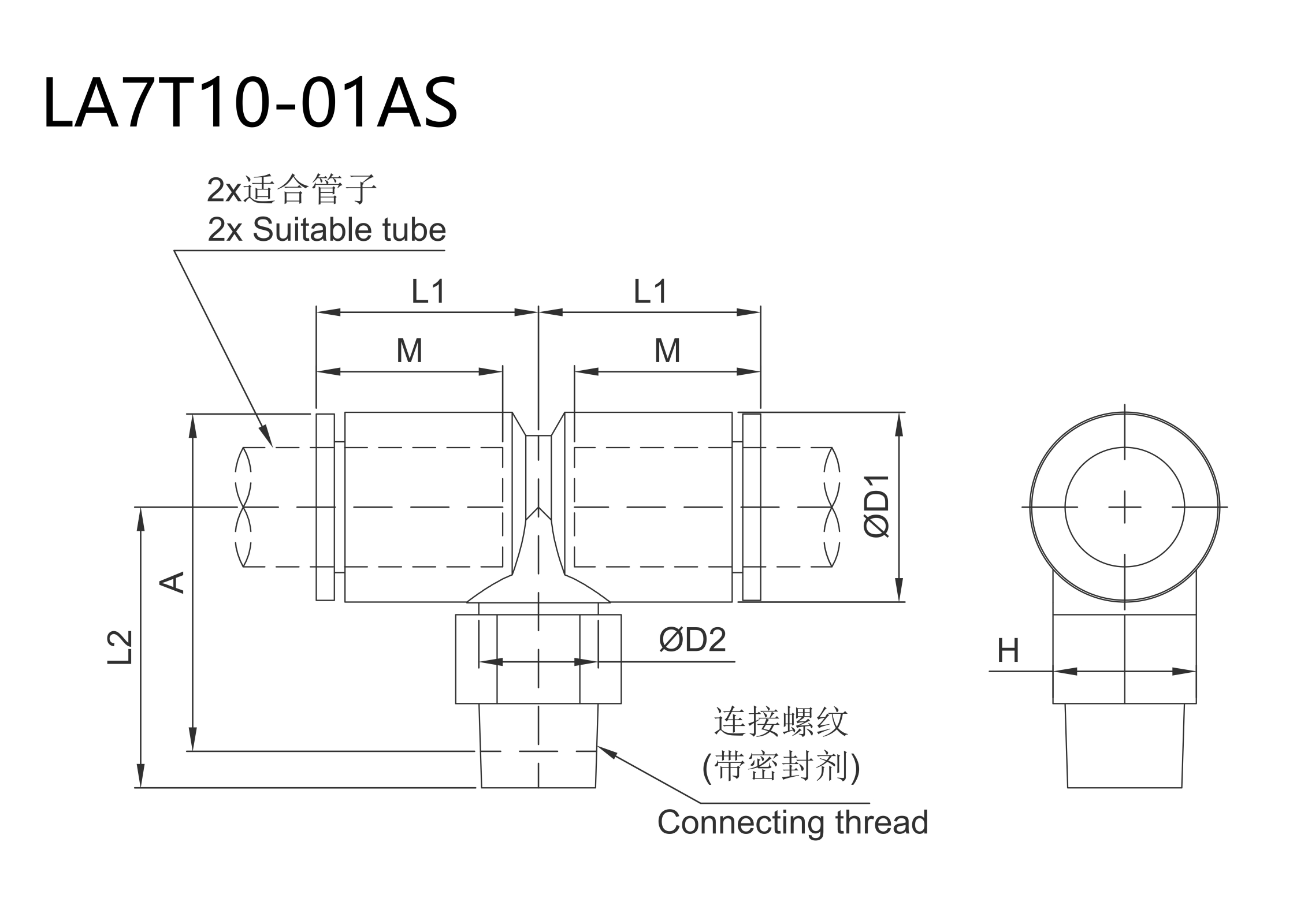

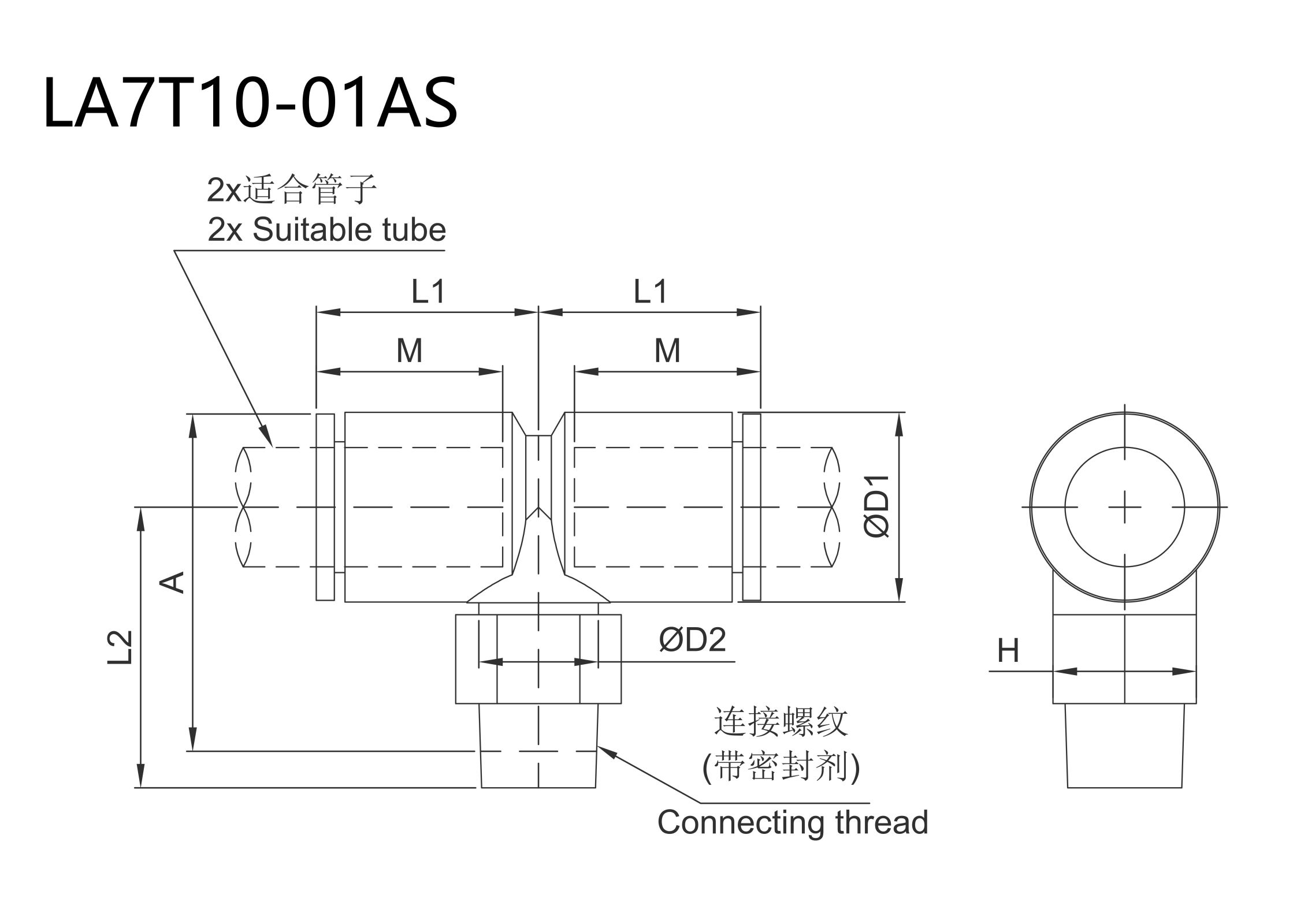

| Tube O.D.mm | Model | Connection thread M | H(mm) | ØD1*(mm) | ØD2(mm) | L1(mm) | L2(mm) | A(mm) | M(mm) | Effective cross-sectional area mm | Minimum Hole Diameter(mm) | Weight | |
| Nylon | Polyurethane | ||||||||||||
| Ø4 |
0
|
1/8 | 10 | 8.2 | 10 | 14.8 | 16.2 | 17.2 | 13.3 | 6 | 4.1 | 3 | 5.5g |
|
0
|
1/4 | 14 | 8.2 | 10 | 14.8 | 21.7 | 21.1 | 13.3 | 6 | 4.1 | 3 | 15g | |
| Ø6 |
0
|
1/8 | 10 | 10.4 | 10 | 15.5 | 17.3 | 19.4 | 13.3 | 13.9 | 11 | 4.5 | 6.1g |
|
0
|
1/4 | 14 | 10.4 | 10 | 15.5 | 22.8 | 23.3 | 13.3 | 13.9 | 11 | 4.5 | 15.6g | |
|
0
|
3/8 | 17 | 10.4 | 10 | 15.5 | 24.1 | 24.2 | 13.3 | 13.9 | 11 | 4.5 | 27.4g | |
| Ø8 |
0
|
1/8 | 10 | 13.2 | 10 | 16.4 | 18.7 | 22.2 | 14.2 | 14 | 14 | 4.5 | 7.9g |
|
0
|
1/4 | 14 | 13.2 | 12 | 17.2 | 25.4 | 27.3 | 14.2 | 26.3 | 18.2 | 6 | 19.4g | |
|
0
|
3/8 | 17 | 13.2 | 12 | 17.2 | 25.5 | 27 | 14.2 | 26.3 | 18.2 | 6 | 26.5g | |
| Ø10 |
0
|
1/8 | 12 | 15.9 | 12 | 18.6 | 23.5 | 28.4 | 15.6 | 21.6 | 14.9 | 6 | 13.9g |
|
0
|
1/4 | 17 | 15.9 | 17 | 19.3 | 28.6 | 31.9 | 15.6 | 35.2 | 25 | 7.5 | 24.3g | |
|
0
|
3/8 | 17 | 15.9 | 17 | 19.3 | 29.5 | 32.4 | 15.6 | 35.2 | 25 | 7.5 | 24.8g | |
|
0
|
1/2 | 22 | 15.9 | 17 | 19.3 | 33.5 | 35.1 | 15.6 | 35.2 | 25 | 7.5 | 47.3g | |
|
Reference dimensions of the R thread after insertion. ØD1 represents the maximum diameter. |
|||||||||||||
